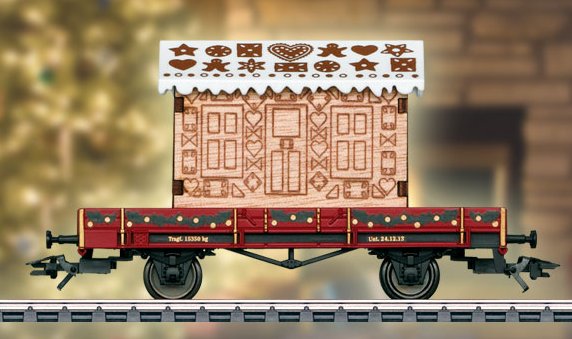

Prototype: Type X 05 low side car. Fictitious paint scheme for Christmas.

Model: The low side car comes loaded with a Christmas cookie house made of wood. The car has close couplers with a guide mechanism. Length over the buffers 10.7 cm / 4-1/4". DC wheel set 2 x 700580.

Highlights:

• Christmas cookie house made of wood as a load.

• Attractive addition to the Christmas car series.

One-time series.

70361 -- Distant Signal

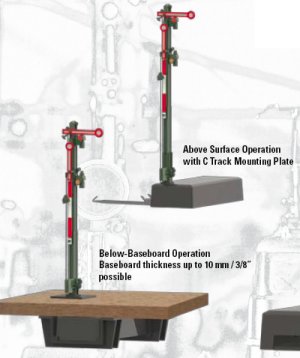

Note:  All the 70xxx signals can be mounted below the baseboard (up to 3/8") for realistic looking operation !!!

The signal has a movable disk. The signal changes from yellow/yellow to green/green.

Stop-and-Go on the Rails. Just like the real life prototype, signals fulfill important control and safety functions on a model railroad too. Märklin signals control rail traffic, because they not only show prototypical signal aspects, they also directly influence train movements. When set for stop, they switch the current off in the center conductor and the catenary in their area; the train remains stopped. For "go slow" or "go normally" they switch the current on; the train runs through or starts up again. If you want to be even more realistic, you set up distant signals at an appropriate distance. They are coupled to their home signals and display appropriate signal aspects. Semaphore/target signals can be controlled conventionally using the 72760 control box and in the digital system using the CS II, MS II, CS I, or the 6040 Keyboard. These newly designed semaphore/target signals have the mfx, Motorola, and DCC digital formats. The mechanisms for these signals are servo drives. The speed of the semaphore / target movement can be programmed. The constant light source is done with LEDs. A below-baseboard mounting kit is included to have the signals look realistic on your layout.

70381 -- Distant Signal

The signal has a movable arm and movable disk. The signal changes either as the 70361 or from yellow/yellow to yellow/yellow/green. It has 2 servos.

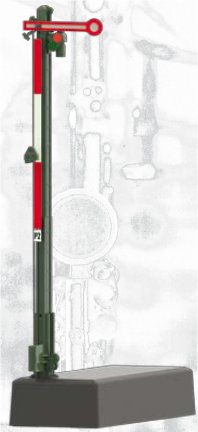

70391 -- Home Signal with a Narrow Mast

The signal has a semaphore and an open narrow mast. The signal changes from red to green.

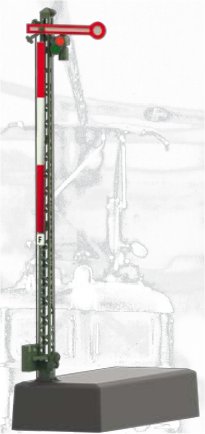

70392 -- Home Signal with a Lattice Mast

The signal has a semaphore and an open lattice mast. The signal changes from red to green.

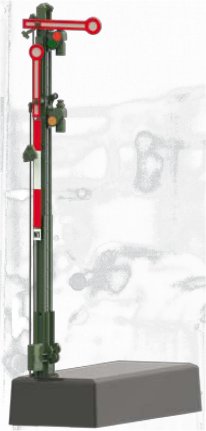

70411 -- Home Signal with a Narrow Mast

The signal has 2 independent semaphores and an open narrow mast. The signal changes from red to green or red to green/yellow.

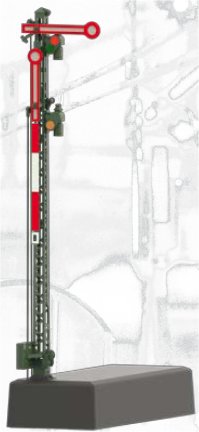

70412 -- Home Signal with a Lattice Mast

The signal has 2 independent semaphores and an open lattice mast. The signal changes from red to green or red to green/yellow.

70421 -- Yard Signal

The signal mast has a movable front and rear lens.

72760 -- Signal Control Box for Advanced Signals

Signal control box for the 70361, 70381, 70391, 70392, 70411, 70412, and 70421 semaphore/target signals and for the 764xx series color light signals. This control box is for operating up to 4 signals. A multi-conductor cable with plugs is included for connecting control boxes together.

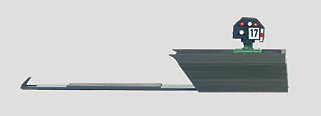

76471 -- Color Light Track Block / Yard Signal



Prototype: German Federal Railroad (DB) standard design yard signal. Dwarf signal without a mast. 2 settings: "Stop" - red/red (Sh0) and "Proceed" - white/white (Sh1).

Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. There is a plug contact on the narrow base of the signal housing. The signal housing has a small lens hood. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with the 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation of the signal. Connections for controlling train movements are on the signal decoder. Height without base 10.0 mm / 3/8".

Highlights:

• Yard signal for use in switching areas.

• Signal housing on a prototypically narrow base.

• The Sh1 aspect is correct with 2 white lights.

Prototype: German Federal Railroad (DB) standard design yard signal. High mounted signal with tubular mast. 2 settings: "Stop" - red/red (Sh0) and "Proceed" - white/white (Sh1).

Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation of the signal. Connections for controlling train movements are on the signal decoder. Height without base 50.0 mm / 1-15/16".

Highlights:

• Yard signal for use in switching areas.

• Prototypical thin pipe mast.

• The Sh1 aspect is correct with 2 white lights.

76480 -- Color Light Distant Signal



Prototype: German Federal Railroad (DB) standard design distant signal. Distant signal with 3 settings: "Prepare to Stop" - yellow/yellow (Vr0), "Prepare to Proceed" - green/green (Vr1), and "Prepare to Proceed Slowly" - green/yellow (Vr2).

Model: The signal has an integrated electronic signal circuit. It can be connected to the separate signal decoder of the home signal to which it is assigned. It can be used for all home signals. All of its functions can be controlled from the signal decoder for the home signal. For digital operation, the signal decoder for the home signal assigns the configuration and the address. Height without base 61.0 mm / 2-3/8".

Highlights:

• This distant signal can be used with all home signals.

• Signal aspects for this signal are automatically assigned when it is connected to a signal decoder.

Prototype: German Federal Railroad (DB) standard design distant signal with additional light. Distant signal with 3 settings: "Prepare to Stop" - yellow/yellow (Vr0), "Prepare to Proceed" - green/green (Vr1), and "Prepare to Proceed Slowly" - green/yellow (Vr2). The white additional light means that the distance between the distant and the home signal is less than the regular braking distance.

Model: The signal has an integrated electronic signal circuit. It can be connected to the separate signal decoder of the home signal to which it is assigned. It can be used for all home signals. All of its functions can be controlled from the signal decoder for the home signal. For digital operation, the signal decoder for the home signal assigns the configuration and the address. Height without base 61.0 mm / 2-3/8".

Highlights:

• This distant signal can be used with all home signals.

• Signal aspects for this signal are automatically assigned when it is connected to a signal decoder.

76491 -- Color Light Home Signal



Prototype: German Federal Railroad (DB) standard design block signal. 2 settings: "Stop" - red (Hp0) and "Proceed" - green (Hp1).

Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions can be done in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation of the signal. Connections for controlling train movements and for 1 distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".

Highlights:

• Block signal for use on main lines.

• An appropriate distant signal by itself is item no. 76480 and 76481, or a distant signal on the same mast with other signals, item no. 76495 and 76496.

76493 -- Color Light Home Signal



Prototype: German Federal Railroad (DB) standard design entry signal. 3 settings: "Stop" - red (Hp0), "Proceed" - green (Hp1) and "Proceed Slowly" - green/yellow (Hp2).

Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".

Highlights:

• Entry signal for use before stations.

• An appropriate distant signal by itself is item no.  76480 and 76481, or a distant signal on the same mast with other signals, item no. 76495 and 76496.

76494 -- Color Light Home Signal



Prototype: German Federal Railroad (DB) standard design exit signal. 4 settings: "Stop" - red/red (Hp00), "Proceed" - green (Hp1) and "Proceed Slowly" - green/yellow (Hp2,) as well as "Stop, Switching Permitted" - red/white/white (Hp0/Sh1).

Model: The signal has an integrated electronic signal circuit and 1 separate signal decoder. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".

Highlights:

• Exit signal for use in station areas.

• An appropriate distant signal by itself is item no. 76480 and 76481, or on entry signal, item no. 76497.

• Built-in yard signal with white light.

Note: This signal is available in combination with a distant signal as item 76496.

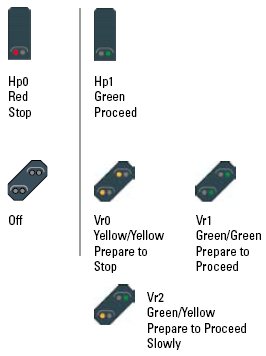

76495 -- Color Light Home Signal with a Color Light Distant Signal



Prototype: German Federal Railway (DB) standard design block signal with a distant signal on the same signal mast. Home signal with 2 settings like item no. 76491. Distant signal with 3 settings like item no. 76480 / 76481.

Model: The signal has 2 built-in electronic signal circuits and 1 separate signal decoder. The distant signal can be used for all home signals. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 additional distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".

Highlights:

• 2 signals on one mast without additional connections.

• Block signal for use on main lines.

• Distant signal for use before a block signal or an entry signal.

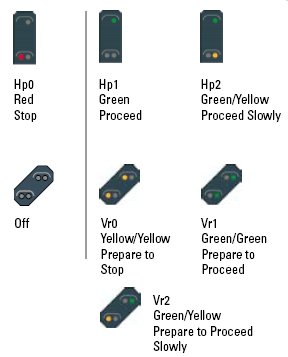

76496 -- Color Light Home Signal with a Color Light Distant Signal



Prototype: German Federal Railway (DB) standard design exit signal with a distant signal on the same signal mast. Home signal with 4 settings like item no. 76494. Distant signal with 3 settings like item no.  76480 / 76481.


Model: The signal has 2 built-in electronic signal circuits and 1 separate signal decoder. The distant signal can be used for all home signals. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 additional distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".

Highlights:

• 2 signals on one mast without additional connections.

• Exit signal for use in station areas, or for entry to the main line.

• Distant signal for use before a block signal or an entry signal.

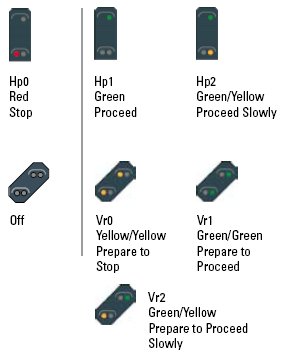

76497 -- Color Light Home Signal with a Color Light Distant Signal



Prototype: German Federal Railway (DB) standard design entry signal with a distant signal on the same signal mast. Home signal with 3 settings like item no. 76493. Distant signal with 3 settings like item no. 76480 / 76481.

Model: The signal has 2 built-in electronic signal circuits and 1 separate signal decoder. The distant signal can be used for all home signals. Control of all functions is possible in the digital system with the signal decoder included with the signal, or in conventional operation with a 72760 control box. The signal decoder can be installed under C Track or under the layout. For digital operation, the configuration and the address can be assigned and tested before the installation of the signal. Connections for controlling train movements and for 1 additional distant signal are on the signal decoder. Height without base 78.0 mm /3-1/16".
Highlights:

• 2 signals on one mast without additional connections.

• Entry signal for use before stations.

• Distant signal for use before an exit signal.

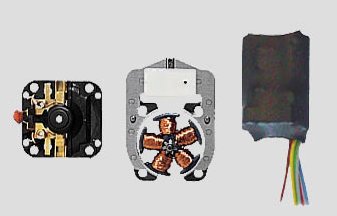

This is a set for installation in a locomotive and comes with a controlled digital decoder and a powerful motor (conversion kit). It will fit into most Märklin H0 locomotives with drum-style commutator motors. The decoder has 80 programmable addresses, automatic switching between the modes of operation, a load compensation feature, and a digitally controlled connection for headlights / marker lights that change over with the direction of travel. The acceleration and braking delay can be controlled with a 6021 Control Unit or with Märklin Digital. The motor has a 5-pole armature, a powerful permanent magnet field, and a pre-installed bearing plate. Installation hardware is included. Decoder dimensions 25 x 17 x 6 mm / 1" x 11/16" x 1/4".

Highlights:

• Compact design, controlled digital decoder.

• Powerful 5-pole Märklin motor to replace an existing motor.

• Easy upgrade for many older locomotives.

• A great price!

Limited rerun, available only as long as supplies last.

Important Note! The manufacturer's warranty can only be covered, when this high-efficiency propulsion set has been installed by an authorized dealer. The warranty provisions are invalid if non-original Märklin components are used or if other makes of products not authorized by Märklin are used.

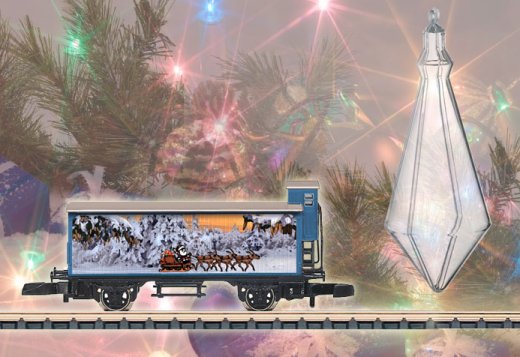

80623 --  2013 Märklin "Z" Christmas Car

Prototype: Older design refrigerator car with a brakeman's cab.

Model: This is an old-timer car in a Christmas paint scheme. Length over the buffers 40 mm / 1-9/16".

One-time series only in 2013.

The Christmas car for 2013 comes in a transparent pine cone. This can be hung on a Christmas tree with the help of the cord included with the car. This car continues the series of festive themes from previous years..

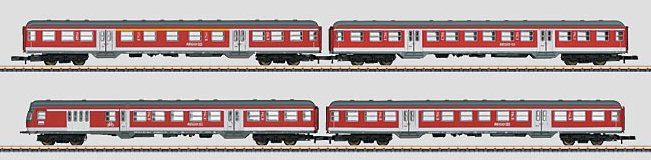

87170  --  DB Regio, Inc. Commuter Car Set



Prototype: Typical Era VI commuter car set, consisting of 2 each type Bnrz 436.4 commuter cars, 2nd class, 1 each type ABnr 418.4 commuter car, 1st/2nd class, and 1 each type BDnrzf 463 commuter service cab control car.

Model: This is a 4-part car set consisting of a 1st/2nd class car, two 2nd class cars, and a cab control car. The cab control car has warm white/red LEDs as headlights / marker lights that change over with the direction of travel. All of the cars have finely executed extensive paint schemes and lettering. They are equipped with dark nickel-plated metal wheel sets. Total length over the buffers approximately 480 mm / 18-7/8".

One-time series for the Märklin Dealer Initiative (MHI) or Exclusiv Program.

All of the cars come in a special version and are not available separately.

The 87170 car set can be turned into a prototypical commuter train with the addition of the 88787 locomotive.

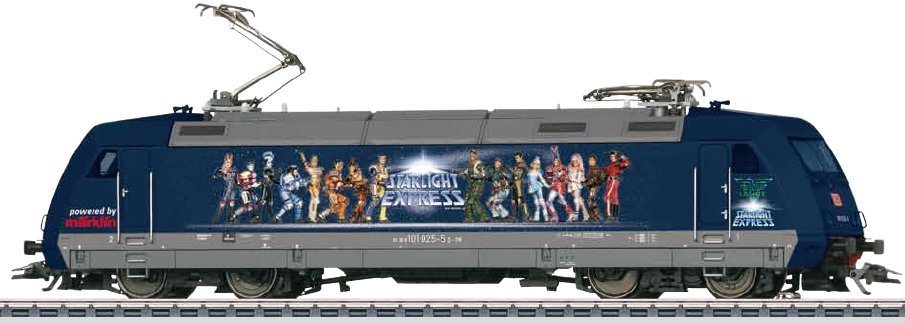

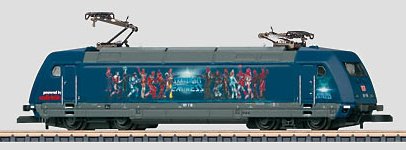

88675  --  DB AG Class 101 "Starlight Express" Express  Locomotive


Prototype: German Railroad, Inc. (DB AG) class 101 express locomotive. Includes advertising on the sides for the anniversary "25 Years of the Starlight Express". The locomotive looks as it currently does in 2013.

Model: Both trucks are powered. The lighting is warm white and red LEDs that change over with the direction of travel. The locomotive has a fine, extensive paint scheme and imprinting. Length over the buffers 86 mm / 3-3/8".
Highlights:

• 25 Years of the Starlight Express in Bochum.

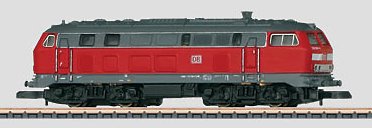

88787  --  DB AG class 218 Diesel Locomotive



Prototype: German Railroad, Inc. (DB AG) class 218 in a "traffic red" paint scheme and with a 12-digit road number.

Model: Both trucks powered. The triple headlights and red marker lights change over with the direction of travel. The lights are maintenance-free warm white and red LEDs. The locomotive has a finely executed, extensive paint scheme and lettering. Length over the buffers approximately 75 mm / 2-15/16".

The 88787 diesel locomotive is being produced in a one-time series only for the Märklin Dealer Initiative or Exclusiv Program.

A prototypical train consist is formed by adding the 87170 car set to the 88787 locomotive.

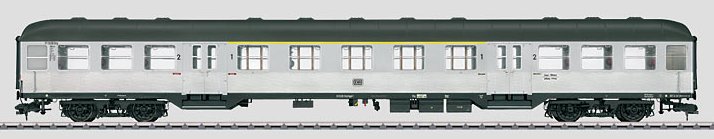

58431 --  "Silberlinge" Commuter Passenger 3-car Set



Prototype: 3 German Federal Railroad (DB) "Silberling / Silver Coin Design" commuter cars. 2 commuter cars (B4nb-59), 2nd class, car numbers 41215 Stg and 41221 Stg. 1 commuter car (AB4nb-59), 1st/2nd class, car number 31028 Stg.

Model: The car bodies are finely constructed of plastic with complete detailed interiors and many separately applied details. The cars reproduce the original, typical "peacock's eye" pattern. The cars have detailed underbodies specific to the car types. The trucks are Minden-Deutz designs with brake shoes and separately applied generators. Each car has built-in interior lighting and marker lights that can be controlled digitally with the factory-installed digital decoder. The interior lighting will work in conventional operation. Maintenance-free, warm white LEDs are used for the interior lighting. The couplers have close coupler mechanisms. All of the cars have a scale length at 82.5 cm / 32-1/2". The minimum radius for operation is 1,020 mm / 40-1/8" (1,550 mm / 61" for operation with parallel curves). Total length over the buffers 248 cm / 97-5/8".

Highlights:

• New tooling.

• Car bodies finely constructed of plastic with many separately applied details and with a representation of the "peacock's eye" pattern true to the original.

• The cars have a scale length at 82.5 cm / 32-1/2".

• Digital decoders for controlling the interior lighting and marker lights included.

One-time series.

The "Silberlinge / Silver Coins" - A DB Success Story. The German Federal Railroad car designated as "Silberling / Silver Coin" is a car adhering to the UIC-X guidelines. It is 26.4 meters / 86 feet 7-3/8 inches long and has 2 entry areas with double doors. The name derives from the car bodies constructed of polished stainless steel. The car group "n", the official designation for the "Silberling", was purchased in a group of 5,000 units between 1961 and 1980 and in different designs. For a long time it was the most widely used car in commuter service on the DB. Depending on the design, these cars tip the scales at 31-40 metric tons and are authorized for a maximum speed of 120-140 km/h / 75-88 mph. The pure 2nd class car has seating for 96, in the mixed class car there is seating for 30 in 1st class and for 46 in 2nd class. The German Federal Railroad placed different cab control cars into service for push/pull operation, which was often done with the class E 41/141. The "Rabbit Hutch", a cab control car with extremely cramped space for the locomotive engineer was replaced by the later "Karlsruher Kopf" type cab control car. This cab control car also had a baggage area, but more importantly a modern, generously arranged engineer's cab. The name derives from the maintenance facility in Karlsruhe, where the cab control cars were rebuilt. The "Silberling" was a universal car, from commuter service to express train, even used as reserve cars in Inter-Zone trains to Berlin. The "n" cars had steam, diesel, and electric locomotives for motive power, and, like many other DB cars, were run in different paint schemes. However, although they have been ignored in mint green, "traffic red", or countless forms of Graffiti, they have remained the "Silberlinge" in popular usage. Presently, these cars are in used on the DB AG in the "traffic red" paint scheme, and similar classes based on the construction principles for the "Silberlinge" can be found in Luxembourg, the Netherlands, and Poland, for example.


58432 --  "Silberlinge" Commuter Cab Control Car

Prototype: German Federal Railroad (DB) "Silberling / Silver Coin Design" commuter cab control car (BD4nf-59), 2nd class with a baggage compartment. "Rabbit hutch" end with a baggage area and rubber tube diaphragm. Car number 96426 Stg.

Model: The car body is finely constructed of plastic with complete detailed interior and many separately applied details. The car reproduces the original, typical "peacock's eye" pattern. The car has a detailed underbody specific to the car type. The trucks are Minden-Deutz designs with double brake shoes and separately applied generators. The car has a built-in mfx decoder with extensive sound functions as well as digitally controlled interior lighting and marker lights. The interior lighting will work in conventional operation. Maintenance-free, warm white LEDs are used for the interior lighting. The couplers have close coupler mechanisms. The car has a scale length at 82.5 cm / 32-1/2". The minimum radius for operation is 1,020 mm / 40-1/8" (1,550 mm / 61" for operation with parallel curves). Length over the buffers 82.5 cm / 32-1/2".

Highlights:

• New tooling.

• Car body finely constructed of plastic with many separately applied details and with a representation of the "peacock's eye" pattern true to the original.

• The car has a scale length at 82.5 cm / 32-1/2".

• mfx decoder with extensive sound and light functions included.

One-time series.

58433 --  "Silberlinge" Commuter Passenger 3-car Set

Prototype: 3 German Federal Railroad (DB) "Silberling / Silver Coin Design" commuter cars. 2 commuter cars (Bnb 719 and Bnb 720), 2nd class, car numbers 508022-12232-1 and 508022-11435-1. 1 commuter car (ABnb 703), 1st/2nd class, car number 508031-53259-1.

Model: The car bodies are finely constructed of plastic with complete detailed interiors and many separately applied details. The cars reproduce the original, typical "peacock's eye" pattern. The cars have detailed underbodies specific to the car types. The trucks are Minden-Deutz designs with double brake shoes and separately applied generators. Each car has built-in interior lighting and marker lights that can be controlled digitally with the factory-installed digital decoder. The interior lighting will work in conventional operation. Maintenance-free, warm white LEDs are used for the interior lighting. The couplers have close coupler mechanisms. All of the cars have a scale length at 82.5 cm / 32-1/2". The minimum radius for operation is 1,020 mm / 40-1/8" (1,550 mm / 61" for operation with parallel curves). Total length over the buffers 248 cm / 97-5/8".


One-time series for 2013.

Top

58434 --  "Silberlinge" Commuter Cab Control Car

Prototype: German Federal Railroad (DB) "Silberling / Silver Coin Design" commuter cab control car (Bdnf 735), 2nd class with a baggage compartment. "Karlsruhe" end with a baggage area. Car number 508082�11530-6.

Model: The car body is finely constructed of plastic with complete detailed interior and many separately applied details. The car reproduces the original, typical "peacock's eye" pattern. The car has a detailed underbody specific to the car type. The trucks are Minden-Deutz designs with double brake shoes and separately applied generators. The car has a built-in mfx decoder with extensive sound functions as well as digitally controlled interior lighting and marker lights. The interior lighting will work in conventional operation. Maintenance-free, warm white LEDs are used for the interior lighting. The couplers have close coupler mechanisms. The car has a scale length at 82.5 cm / 32-1/2". The minimum radius for operation is 1,020 mm / 40-1/8" (1,550 mm / 61" for operation with parallel curves). Length over the buffers 82.5 cm / 32-1/2".

One-time series.
